Product details

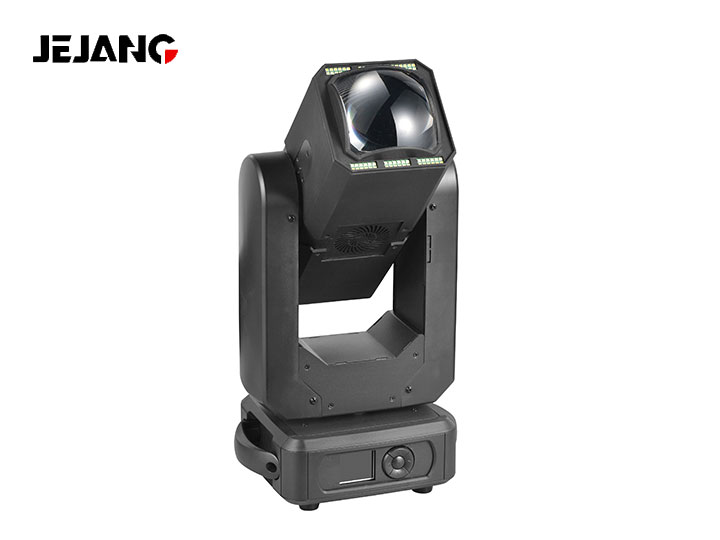

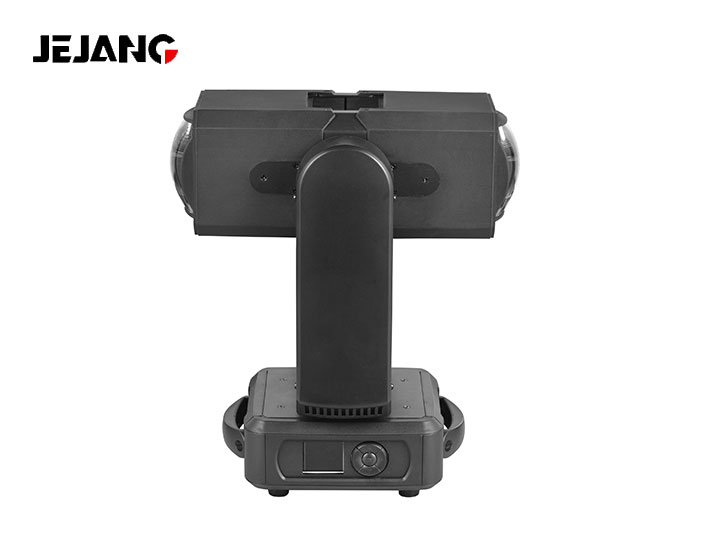

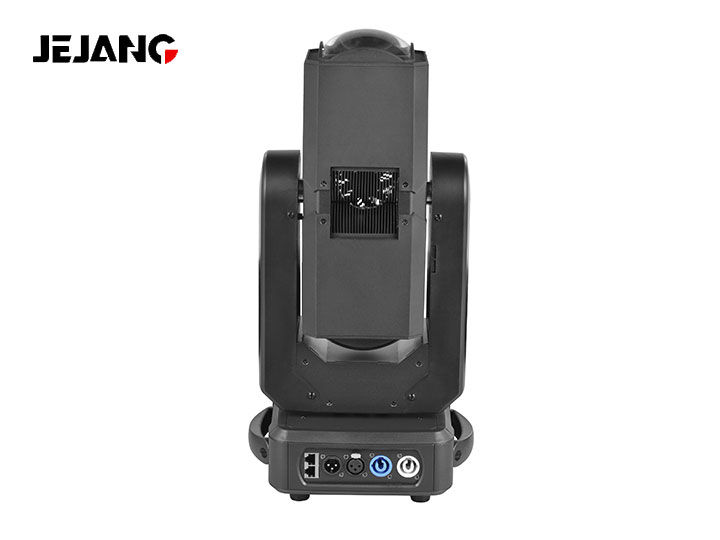

2×80W Infinite Rotating Beam Light
Technical Specifications:
Light Source
Beam Source: 2×80W RGBW LEDs
Auxiliary Light: 72×3W Warm White LEDs + 72×3W White LEDs
Lifespan: 20,000 hours
Optical System
Beam Angle: 2°
Control System
4 touch-sensitive buttons
Control Panel: LCD display
Control Protocol: DMX512, RDM
DMX Channel Modes: 2 types
Control Channels: 22/24CH
Movement System
X-axis Rotation: 360° infinite
Y-axis Rotation: 360° infinite
Automatic position correction for X/Y-axis misalignment
16-bit precision scanning
Fixture Specifications
Dimensions (L×W×H): 245mm × 180mm × 499mm
Net Weight: 7kg
Electrical Specifications
Input Voltage: AC100-240V, 50/60Hz
Power Consumption: 200W
Power Connector: Input/output
Signal Input/Output: 3-pin/5-pin XLR socket
Environmental Specifications
Max Ambient Temperature: 40°C
Min Operating Temperature: 0°C
Protection Rating: IP20
Installation Options
Horizontal or vertical mounting
Includes 2 quick-lock hooks for 50mm truss
Package Contents
User manual
Power cable
Signal cable
Key Features:
Dual-sided infinite rotation capability
High-precision 16-bit movement system
Versatile mounting options
Integrated RGBW and white light sources
LCD control panel with touch buttons
