12×80W Infinite Rotating Beam Light

12×80W Infinite Rotating Beam Light

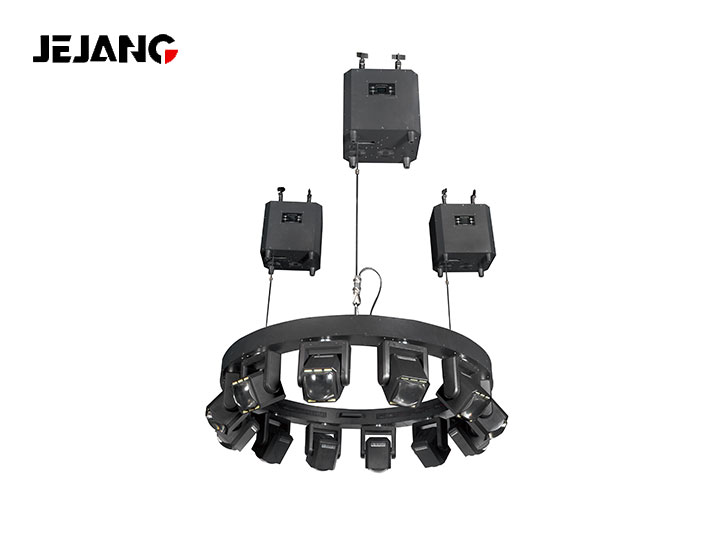

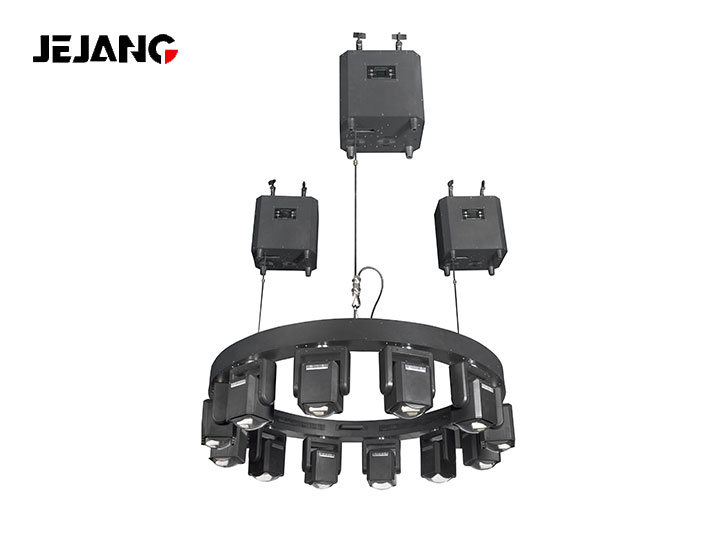

12×80W Infinite Rotating Beam Light with Hoist System

Technical Specifications
Light Source
Beam: 12 × 80W RGBW LEDs
Fill Light: 432 × 3W warm white LEDs + 432 × 3W white LEDs
Lifespan: 20,000 hours
Optical System
Beam Angle: 2°
Control System
Interface: 4 tactile buttons + LCD display
Protocols: DMX512, RDM
Independent addressing for light and hoist
Light DMX Modes: 3 (22/90/130 channels)
Hoist Control Channels: 4CH
Movement System
Pan/Tilt: 360° (X/Y-axis)
Auto-correction for misalignment
16-bit precision scanning
Fixture Dimensions
Light Ring: Ø1200mm (outer)/Ø1000mm (inner) × 313mm(H)
Weight: 39.5kg
Hoist Unit: 321mm(L) × 251mm(W) × 324mm(H)
Weight: 20kg
Hoist System
Quantity: 3 units
Travel: 6m
Speed: 0.5m/s
Load Capacity: 10kg/unit
Safety: Physical brake + electronic protection
Electrical Specifications
Input Voltage: AC 100-240V, 50/60Hz
Light Power: 800W
Hoist Power: 3 × 400W
Connectors: Power-CON in/out, 3-pin/5-pin XLR
Working environment
Temperature Range: 0°C to 40°C
IP Rating: IP20
Installation
Vertical hanging with equilateral spacing
Includes safety hooks and folding hangers
Package Contents
User manual
Power cables
Signal cables
Detachable folding hooks
