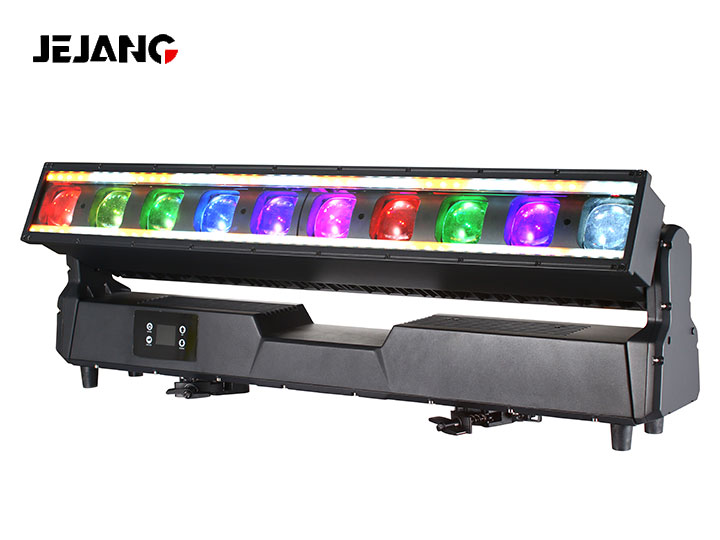

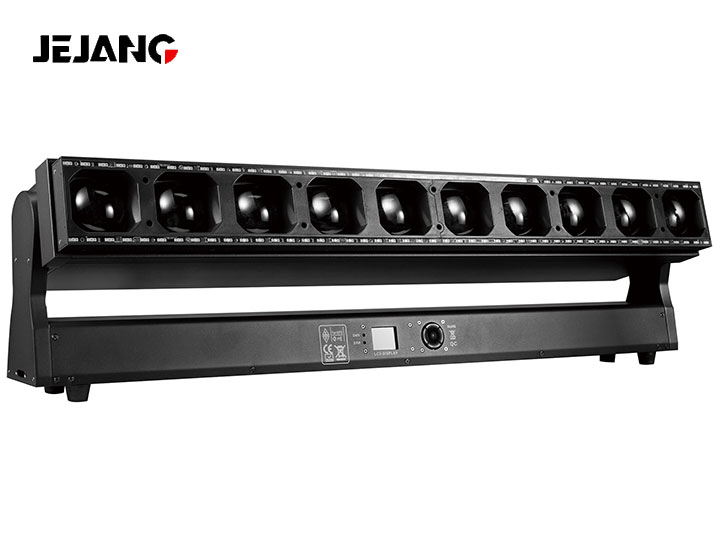

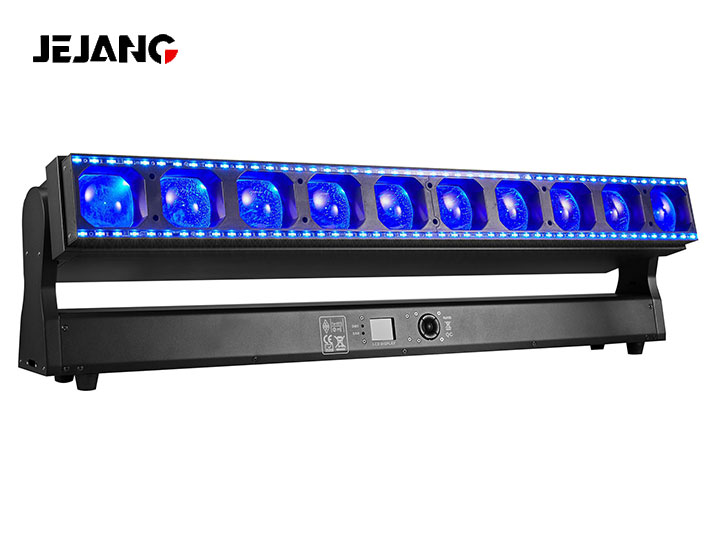

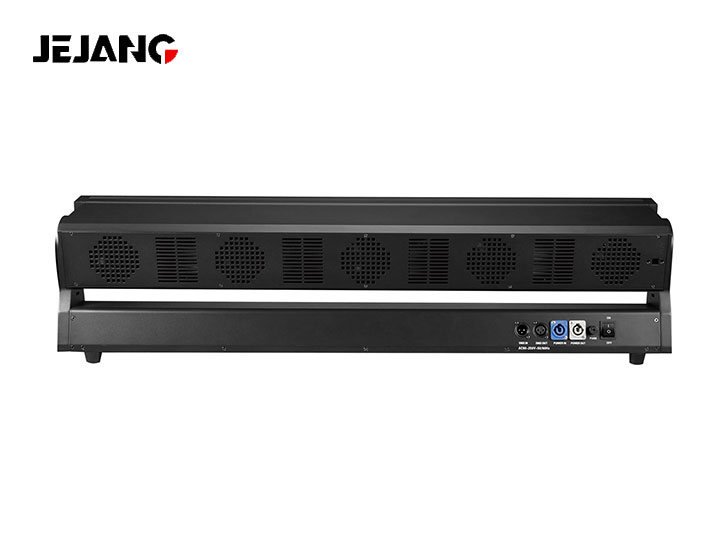

1060 sider winder

1060 sider winder

Light source:
Beam end:
10 x 60W RGBW LED
Strobe terminal:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
White light color temperature: 6,300K
Light lux: 22,400 lm
LED life expectancy: 20,000 hours
Optical system
Zoom angle:
Beam angle: 2.8°-31° (beam end)
Spot angle: 5°-46° (beam end)
Control and procedures
5 keys
Control panel: LCD display
Control protocol: DMX512, RDM
DMX channel mode: 7 types
Channel mode: 17/27/99/108/168/8+100/8+160/170 channel
Software upgrade: update the software through DMX connection
Y-axis
Y-axis operation angle: 202°
Electrical and interface
Input power supply: 180-240V~ 50/60Hz
Power: 800 W
Power outlet: power connector input/output
Signal input/output: three-core or five-core cannon head socket, RJ45
