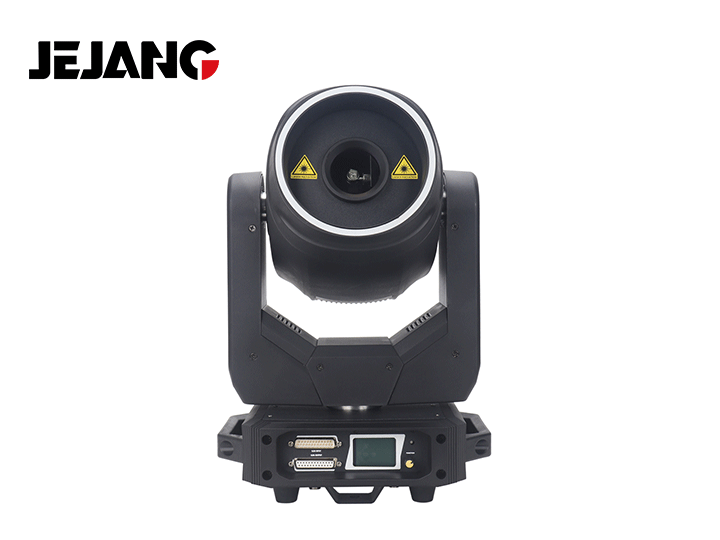

3W moving head laser light

JJ-MH2023L


Hotline: +86-138-2629-2895
Inquire
Product details

3W moving head laser light

◎Rated voltage: AC100~240V 50/60Hz
◎Power consumption:≤100W
◎Scanner: 25kpps , scan angle:max±30°;Input signal:±5V;Linearity distortion<2%
◎Motor: 3 phase 42 motor 2pcs
◎X axis 540° rotation,Y axis 270° rotation
◎Modulation:analog
◎Beam diameter and divergence:3*6.5mm;1.5mrad
◎Control mode:music (black out)/ automatic/master-slave/DMX512(6/40CH)/ILDA
◎Control interface:3 pin DMX512/25DB ILDA
◎Demonstration effect:built-in 140 pattern and 5 pages of animation
◎DMX effect: Single pattern mode,and with the function of unique blanking,strobe,
rotation, movement, billowing, zoom,write in,speed and color etc.
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light.
◎Application:disco, club, concert, medium indoor venue, festival
◎Carton size: 34.5*23*48cm
